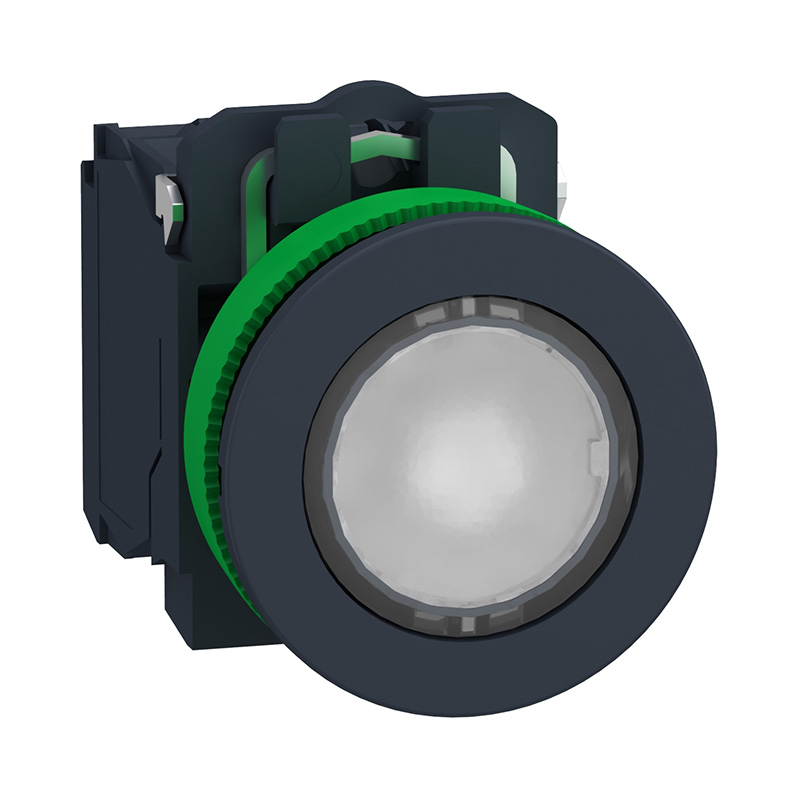

Schneider XB5-FW31M5 Işıklı,Yaylı Buton Çözümleri

range of product	Harmony XB5
product or component type	Illuminated push-button
device short name	XB5F
bezel material	Dark grey plastic
fixing collar material	Plastic
head type	Built-in-flush
mounting diameter	30.5 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	spring return
operator profile	White flush, unmarked
operator additional information	With plain lens
contacts type and composition	1 NO + 1 NC
contact operation	Slow-break
connections – terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
light source	Protected LED
bulb base	Integral LED
[Us] rated supply voltage	220…240 V AC 50/60 Hz
[Us] rated supply voltage	220…240 V
cap/operator or lens colour	White
