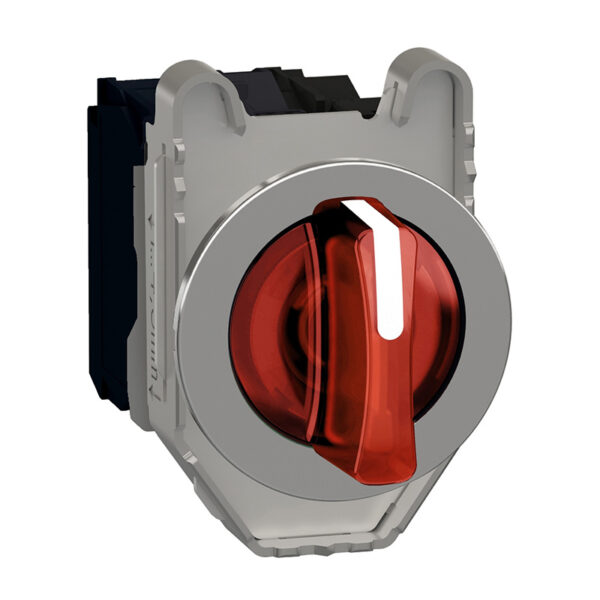

Schneider XB4-FK133M5 Işıklı Mandal Buton Çözümleri

range of product	Harmony XB4
product or component type	Illuminated selector switch
device short name	XB4F
bezel material	Chromium plated metal
fixing collar material	Zamak
head type	Built-in-flush
mounting diameter	30.5 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	stay put
operator profile	Green standard handle
operator position information	3 positions +/- 45°
contacts type and composition	1 NO + 1 NC
contact operation	Slow-break
connections – terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
light source	Protected LED
bulb base	Integral LED
[Us] rated supply voltage	230…240 V AC at 50/60 Hz
