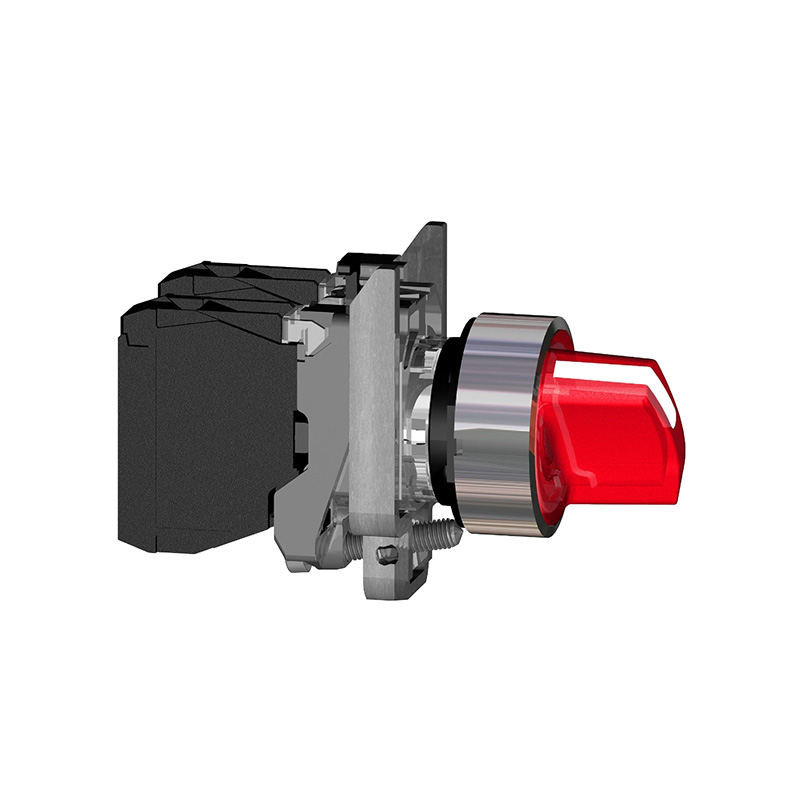

Schneider XB4-BK134B5 Işıklı Mandal Buton Buton Çözümleri

range of product	Harmony XB4
product or component type	Illuminated selector switch
device short name	XB4
bezel material	Chromium plated metal
fixing collar material	Zamak
head type	Standard
mounting diameter	22 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	stay put
operator profile	Red standard handle
operator position information	3 positions +/- 45°
contacts type and composition	1 NO + 1 NC
contact operation	Slow-break
connections – terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
light source	Protected LED
bulb base	Integral LED
[Us] rated supply voltage	24 V AC/DC at 50/60 Hz
