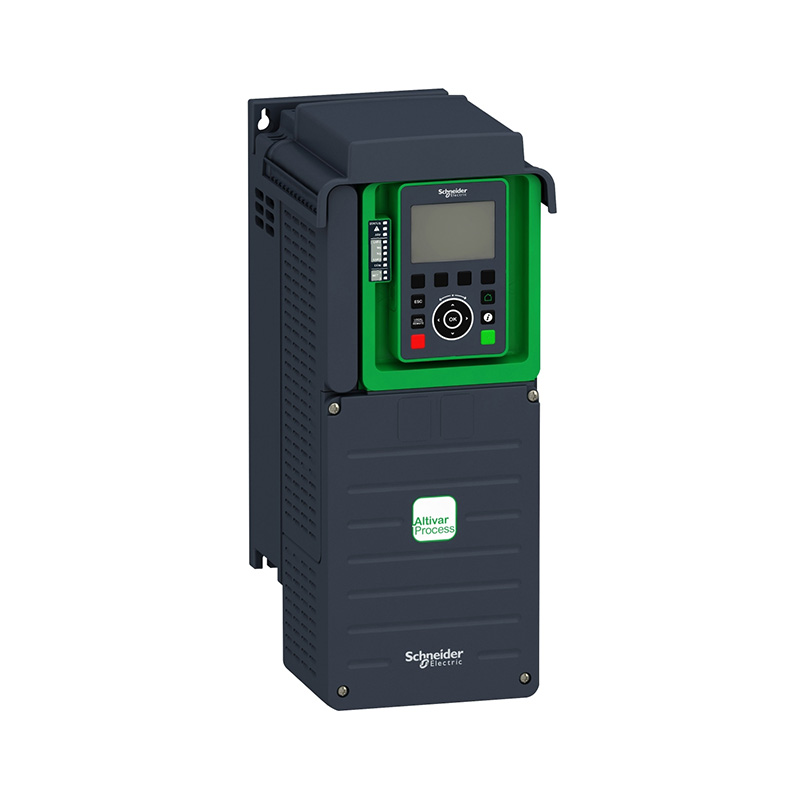

Schneider ATV930U75N4 7.5kW Hız Kontrol Cihazı

Altivar Process ATV900

Variable speed drive

Industrial application

ATV930

Standard version
With braking chopper

Asynchronous motors
Synchronous motors

Integrated with 50 m conforming to EN/IEC 61800-3 category C2
Integrated with 150 m conforming to EN/IEC 61800-3 category C3

IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529

UL type 1 conforming to UL 508C

Forced convection

50…60 Hz +/- 5 %

3 phases

380…480 V – 15…10 %

7.5 kW (normal duty)
5.5 kW (heavy duty)

10 hp normal duty
7.5 hp heavy duty

13.8 A at 380 V (normal duty)
11.9 A at 480 V (normal duty)
10.5 A at 380 V (heavy duty)
9.2 A at 480 V (heavy duty)

50 kA

9.9 kVA at 480 V (normal duty)
7.6 kVA at 480 V (heavy duty)

16.5 A at 4 kHz for normal duty
12.7 A at 4 kHz for heavy duty

19.8 A during 60 s (normal duty)
19.1 A during 60 s (heavy duty)

Variable torque standard
Constant torque standard
Optimized torque mode

Permanent magnet motor
Synchronous reluctance motor

0.1…599 Hz

4 kHz

2…16 kHz adjustable
4…16 kHz with derating factor

STO (safe torque off) SIL 3

16 preset speeds

Ethernet/IP
Modbus TCP
Modbus serial

Slot A: communication module for Profibus DP V1
Slot A: communication module for Profinet
Slot A: communication module for DeviceNet
Slot A: communication module for EtherCAT
Slot A: communication module for CANopen daisy chain RJ45
Slot A: communication module for CANopen SUB-D 9
Slot A: communication module for CANopen screw terminals
Slot A/slot B/slot C: digital and analog I/O extension module
Slot A/slot B/slot C: output relay extension module
Slot B: 5/12 V digital encoder interface module
Slot B: analog encoder interface module
Slot B: resolver encoder interface module
communication module for Ethernet Powerlink
