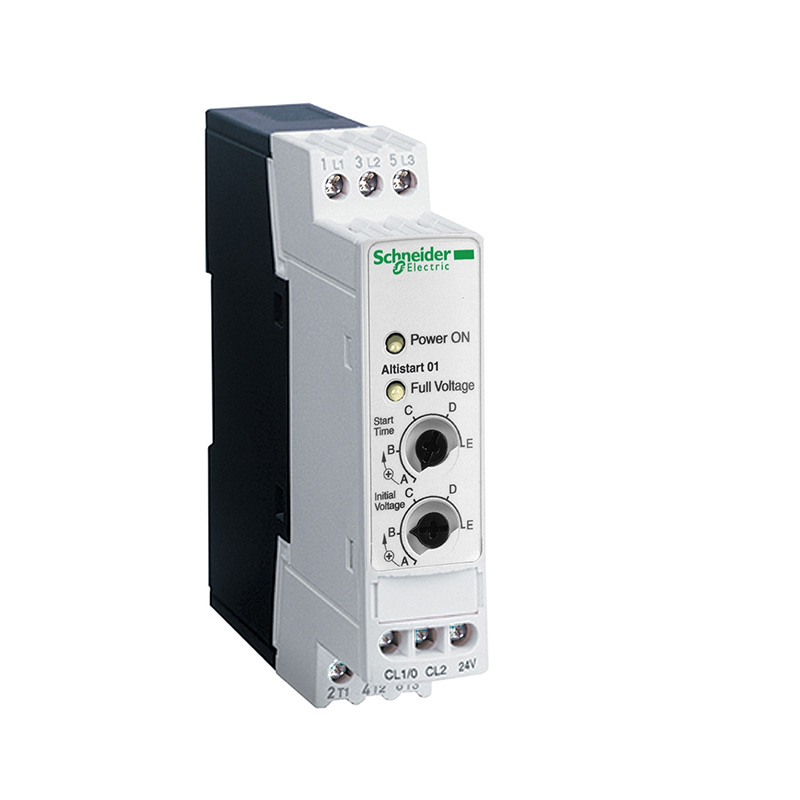

Schneider ATS01N103FT 1.1kW Yumuşak Yol Verme Cihazı

range of product	Altistart 01
product or component type	Soft starter
product destination	Asynchronous motors
product specific application	Simple machine
device short name	ATS01
network number of phases	1 phase
[Us] rated supply voltage	110…480 V – 10…10 %
motor power kW	0.37 kW, 3 phases at 230 V 0.55 kW, 3 phases at 230 V 1.1 kW, 3 phases at 400 V 0.37 kW, 1 phase at 230 V
motor power hp	0.5 hp, 3 phases at 230 V 0.5 hp, 3 phases at 460 V 1.5 hp, 3 phases at 460 V
IcL starter rating	3 A
utilisation category	AC-53B conforming to EN/IEC 60947-4-2
current consumption	15 A at nominal load
type of start	Start with voltage ramp
power dissipation in W	19 W in transient state 4 W at full load and at end of starting
