Eaton SDAINLEM 5,5kW Yıldız-Üçgen Yolverici Çözümleri

Kategoriler: Genel, Kontaktörler ve Termik Röleler, Tüm Ürünler Etiketler: 230v, 240v, 5.5kw, 50hz, 60hz, adana, ankara, antalya, aydin, bursa, çorum, eaton, eaton alçak gerilim, eaton-kontaktör, Istanbul, izmir, konya, sdaınlem, sigorta, üçgen, yıldız, yolverici

Açıklama
Ek bilgi
Genel Bilgi
Dökümanlar

Açıklama

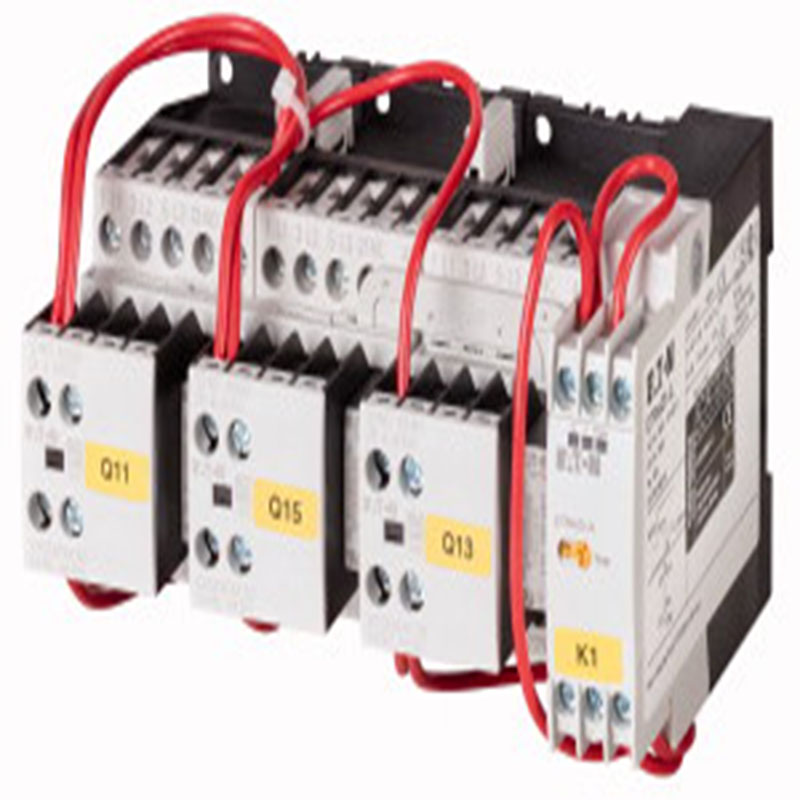

Star-delta contactor combination, Application: Star-delta motor starting for contactor combinations, Operating frequency: maximum 30 starts per hour, Accessories: Star-delta combinations SDAINL, Utilization category: NAC-3: Normal AC induction motors: starting, switch off during running, Rated operational current AC-3 380 V 400 V: Ie= 12 A, Max. rating for three-phase motors, 50 – 60 Hz AC-3 220 V 230 V: P= 3 kW, 380 V 400 V: P= 5.5 kW, 500 V: P= 5.5 kW, 660 V 690 V: P= 5.5 kW, Max. changeover time: 20 s, Actuating voltage: 230 V 50 Hz, 240 V 60 Hz, Voltage AC/DC: AC operation, Individual components of the combination Mains contactor Q11: DILM7-10, + DILA-XHI20, Delta contactor Q15: DILM7-01, + DILA-XHI20 Part no., Star contactor Q13: DILM7-01, + DILA-XHI20 Part no., Timing relay K1: ETR4-51 Part no., Notes: Also suitable for motors with efficiency class IE3
