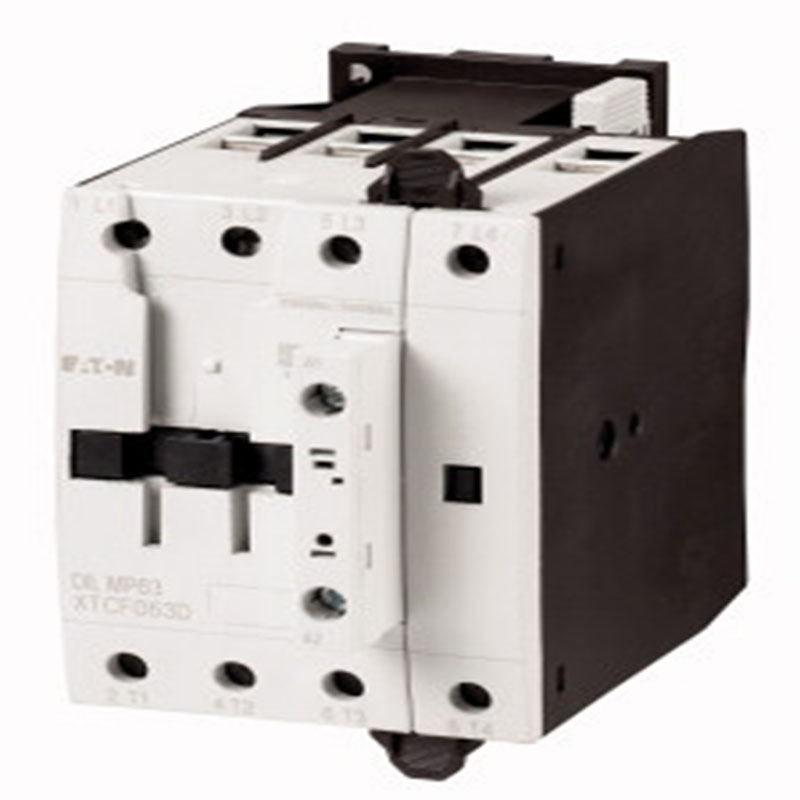

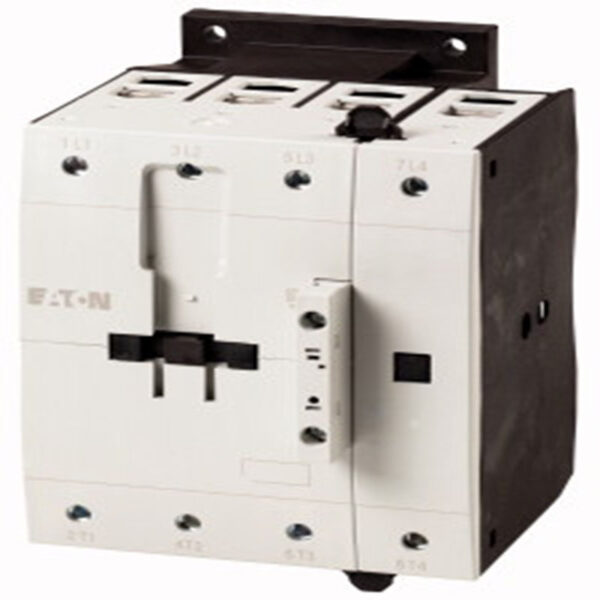

Eaton DILMP80 80A 4 Kutuplu Kontaktör Çözümleri

Contactor, Application: Contactors for 4 pole electric consumers, Contactors up to 200 A, 4 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, Connection technique: Screw terminals, Number of poles: 4 pole, 380 V 400 V: Ie= 50 A, Conventional free air thermal current, 3 pole, 50 – 60 Hz Open at 40 °C: Ith =Ie= 80 A, enclosed: Ith= 64 A, Conventional free air thermal current, 1 pole open: Ith= 207 A, enclosed: Ith= 186 A, 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Instructions: Contacts to EN 50 012., Voltage AC/DC: AC operation
